CIMCO Edit – solution description
CIMCO Edit provides comprehensive tools necessary for editing CNC programs. The program has no limit on the number of lines or file sizes. It is possible to renumber blocks and find ranges in the X, Y, Z axes. It also includes basic mathematical functions, rotation, mirror and offset or tool compensation. Of course, it is possible to drop and drag text. CIMCO Edit can be adapted to any CNC programming environment.
The NC Assistant identifies a G- or M-code when you hover over it, allowing you to modify it using an interactive interface. It is possible to insert the desired value into the command, and the NC Assistant will update the code. This functionality is very useful for quick editing and inserting cycles and operations. CIMCO Edit includes built-in cycles and macros for the most frequently used sequences (such as program start, stop or tool change). You can also create and customize cycles and macros for your own applications.
CIMCO Edit has simulation and shows code paths for milling and lathes by following the program step by step and continuous machining. After editing, the program automatically updates, which is immediately visible in the simulation. The paths drawn by the program are also updated. They can be dynamically enlarged, moved, rotated and measured. In CIMCO Edit we have solid simulation taking into account material removal, tool holder and collision detection. It is also worth taking an interest in the Machine Simulation add-on, which allows solid simulation of paths using the model and kinematics of a specific machine tool.

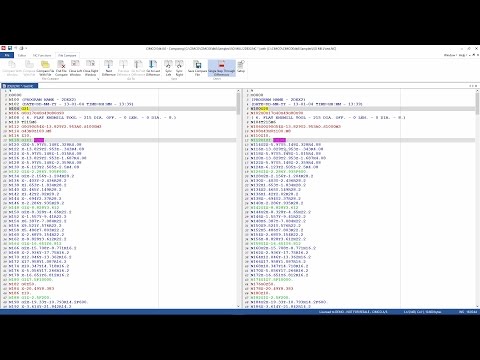

In CIMCO Edit it is possible to quickly and fully configurably compare two files, allowing you to easily find changes for similar NC programs. It is possible to remove, insert or change lines of code (things such as spaces or different block numbers are ignored). Differences can be displayed in several ways.
Program interface
Video
CIMCO - The Editor of choice for CNC programmers
CIMCO - Standard vs. Professional
CIMCO Machine Simulation
Mazatrol Viewer add-on for CIMCO Edit
CIMCO - The Editor of choice for CNC programmers
CIMCO - Standard vs. Professional
CIMCO Machine Simulation
Mazatrol Viewer add-on for CIMCO Edit
Benefits of the CIMCO program
G-code simulation
Real G-code based toolpath simulation so you can see the physical tool movements that will take place later on the machine.
Connection with machines
Possibility to transfer files via serial interface directly to machines (including from one computer to multiple machining centers).
Working without occupying the machine
Speed up work by simulating code execution without occupying the machine.
Code Editing
Quick editing of code divided into sections (including renumbering lines or easily changing a given value in a cycle).
Extras
A wide range of additional solutions (add-ons) for CIMCO Edit allows it to be significantly expanded and adapted to the preferences and needs of a specific company.
Price
The solution is very affordable, which means that without the need for large investments in expensive solutions, the company can afford to acquire one of the most popular NC code editors on the market.
Selected program functions
Handling large programs
Fast handling of even the largest CNC programs. The only limitation is the computer's memory.
NC functions
Min. numbering/renumbering, character handling, range finding in X,Y,Z axes etc.
File configurations
It is possible to color sections, add different numbering methods, support various extensions.
Mathematical functions
Basic mathematical functions, rotation, mirror, offset and tool compensation.
DNC Communications
By configuring the serial port via RS-232 we can connect the computer to the machines.
File comparison
File comparison identifies new, changed, and deleted lines, but ignores trivial format changes such as block numbering and spacing.
STL file support
The STL file can be loaded into the simulation. This helps verify the code that is going to the machine. The target file and its fixtures can be prepared in CAD.The STL file can be loaded into the simulation. This helps verify the code that is going to the machine. The target file and its fixtures can be prepared in CAD.
G-code simulation
for HAAS
The simulation takes into account unique cycles for HAAS machines.
Milling
and turning simulation
Milling and turning simulation where we can follow the code line by line or in continuous mode along with material removal simulation and collision checking.
NC Assistant
Point to any M or G code and the NC assistant will identify it and let you modify its values using an interactive interface linked to the CNC code. Enter new values and the code will automatically update.
Cycle support
Allows the user to quickly add/edit advanced cycles and operations.
Dragging elements
In CIMCO we have the ability to drag and drop elements.
Configurable printing
CIMCO offers many printing options including the use of ISO standards. It is possible to print in multiple columns (up to 4) to save paper.
Program customization
A comprehensive system of options and functions allows you to increase the comfort of working with the program to adapt it to your needs and work mode.
Saving Paths
as DXF Files
Each toolpath can be saved as a separate layer in the DXF file. Rapid moves are shown in red and working moves in green. Spiral moves are converted to arcs.
CIMCO Modules
CNC Calc
CNC-Calc is an add-on that allows you to create 2D contours, based on which G code is generated. It has many editing options such as advanced trimming, creating fillets, shifts or arrays. Using this add-on, creating programs for CNC milling machines and lathes is simple and pleasant. In addition to drawing itself, it is possible to load a DXF file as a contour. CNC-Calc is easy to use, has functionalities that make work easier, and calculates the path very quickly. It can be used together with other Cimco functionalities.
CIMCO NC-Base
CIMCO NC-Base supports the management of programs and related documents. It is based on an SQL database. It allows sharing folders between operators. The add-in transfers data such as programs, setup sheets and tool lists. The program has a version control system that tracks changes made to files and the ability to manage user permissions regarding file access.
CIMCO Mazatrol Viewer
CIMCO Mazatrol Viewer allows you to browse Mazatrol files. This allows you to check them on your computer before you upload them to your machine. The code is displayed in a user-friendly format, making it easy to make changes. The program has the ability to compare and browse files intended for multi-channel machines (displaying several channels at once). Editing options are similar to CIMCO Edit, including performing simple mathematical functions, rotations, mirroring, and tool compensation.
Machine Simulation
CIMCO Machine Simulation is an add-on that verifies programming errors at the program preparation stage. It simulates tool paths using a model of a specific CNC machine tool along with its assigned kinematics. Thanks to this, the simulation presents the actual movement of the tool along with the components of the clamping systems and the machine tool itself. Programs prepared in this way are easier to implement, and the risk of any collision is reduced to a minimum.
CNC Calc
CIMCO NC-Base
CIMCO Mazatrol Viewer
CNC-Calc is an add-on that allows you to create 2D contours, based on which G code is generated. It has many editing options such as advanced trimming, creating fillets, shifts or arrays. Using this add-on, creating programs for CNC milling machines and lathes is simple and pleasant. In addition to drawing itself, it is possible to load a DXF file as a contour. CNC-Calc is easy to use, has functionalities that make work easier, and calculates the path very quickly. It can be used together with other Cimco functionalities.
CIMCO NC-Base supports the management of programs and related documents. It is based on an SQL database. It allows sharing folders between operators. The add-in transfers data such as programs, setup sheets and tool lists. The program has a version control system that tracks changes made to files and the ability to manage user permissions regarding file access.
CIMCO Mazatrol Viewer allows you to browse Mazatrol files. This allows you to check them on your computer before you upload them to your machine. The code is displayed in a user-friendly format, making it easy to make changes. The program has the ability to compare and browse files intended for multi-channel machines (displaying several channels at once). Editing options are similar to CIMCO Edit, including performing simple mathematical functions, rotations, mirroring, and tool compensation.
Machine Simulation
CIMCO Machine Simulation is an add-on that verifies programming errors at the program preparation stage. It simulates tool paths using a model of a specific CNC machine tool along with its assigned kinematics. Thanks to this, the simulation presents the actual movement of the tool along with the components of the clamping systems and the machine tool itself. Programs prepared in this way are easier to implement, and the risk of any collision is reduced to a minimum.
Packages
Types of licenses
Per-seat license
The license is assigned to the computer. After reinstalling the system or program, a new license key is required, which can be obtained from the distributor.
Network license
One of the computers in the company acts as a license server (with Windows). After installing the software on it (Network License Manager) and providing the serial number, the license pool is activated (1 network serial number contains several licenses). The license pool is available to all computers connected to the server in the local network. No more applications can be run at the same time than there are licenses in the pool.
Other solutions
Subscription
Take advantage of the additional option of SUBSCRIPTION – see what you can gain
Technical support
During the subscription period, we guarantee technical support - our team of certified CIMCO specialists and instructors will help you solve any software-related problem. You can use a phone call, email, HelpDesk ticket, video conference or meeting.
Program update
Get the ability to upgrade to the latest versions of CIMCO software, including new releases and service packs. Email notifications provide access to key news, service requests and the latest software updates.
